Flame-Retardant Thermal Insulation Protective Materia

Flame-Retardant Thermal Insulation Protective Materia

JH-5025

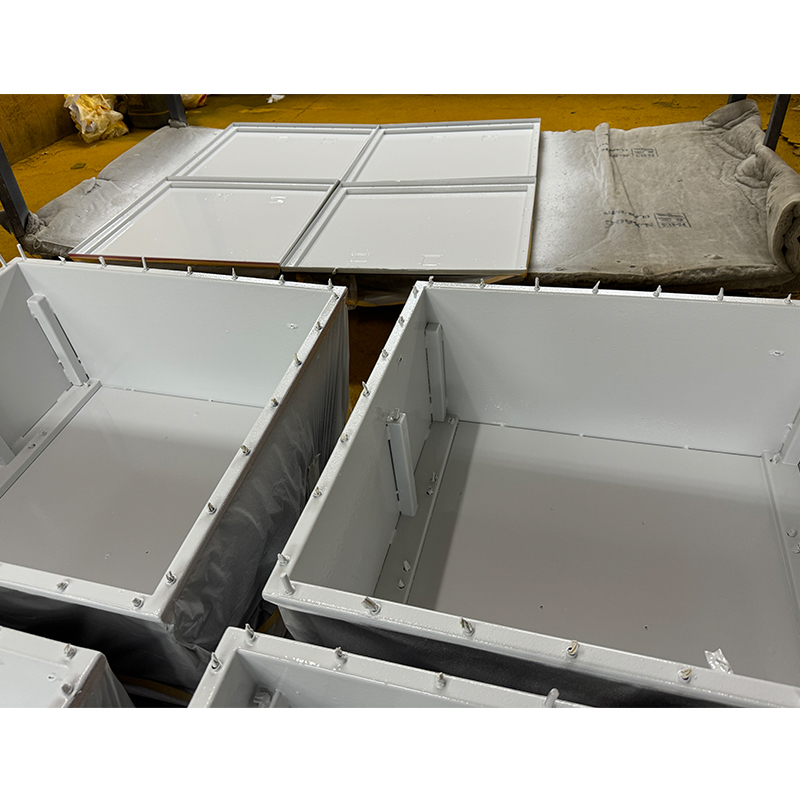

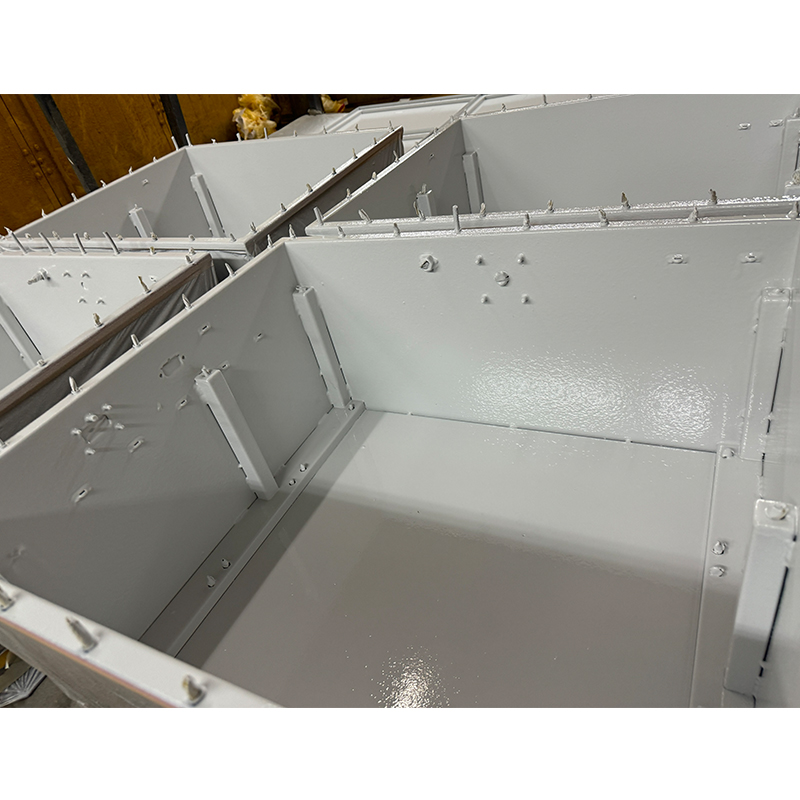

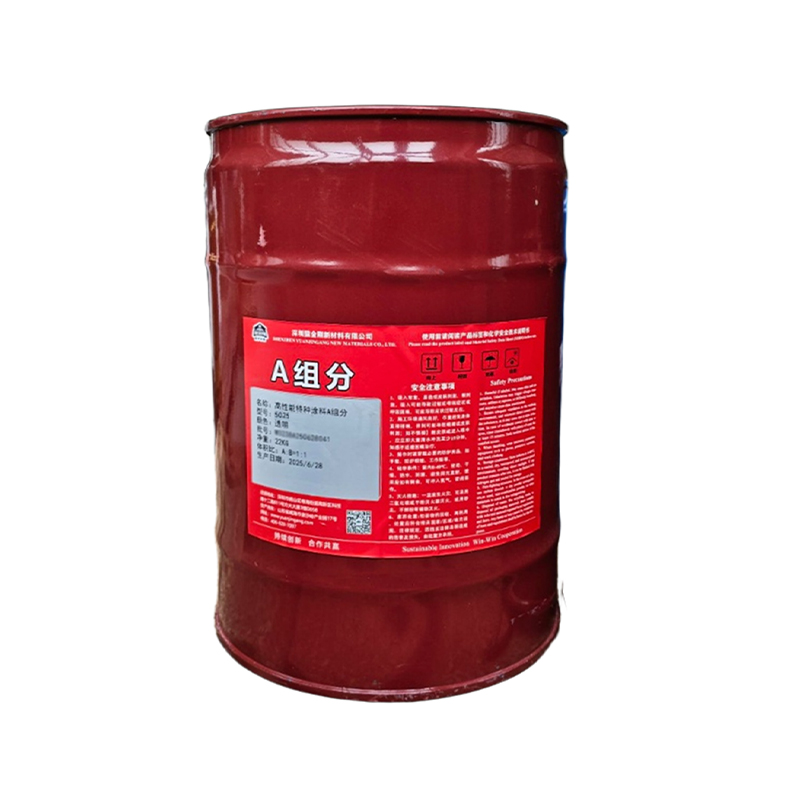

This is a new-generation, two-component, high-solids flame-retardant specialty topcoat. It can be applied via manual brushing, conventional spray equipment, or high-pressure air-assisted spraying. The coating rapidly cures to form a high-strength, scratch-resistant, corrosion-resistant, seamless, and aesthetic continuous protective layer. Applications: Suitable for scenarios requiring both high coating strength and fire resistance, such as on cables, new energy battery boxes, and building steel structures.

Consult

Features Technical Indicators Overall Dimension

Yuanjingang's flame-retardant coating is a solvent-free, two-component elastomeric system with a high solids content (>80%). It offers superior performance and value:
1.Certified Safety: Complies with global environmental standards (RoHS/REACH) and achieves the highest fire safety rating (UL94 V-0, zero flame spread). Achieves ASTM E84 Class A for fireproofing.
2.Extreme Durability: Offers extreme wear resistance (ASTM D4060: <20mg loss) and excellent tensile strength (ISO 527: >12MPa).
3.Chemical Stability: Highly resistant to acids, alkalis, and salts.
4.Competitive Edge: Benchmarked against leading equivalents (BASF/Lubrizol), it provides identical fireproofing performance at a 30% cost reduction and cures twice as fast (30 min @ 25°C).

	Properties	Result		Properties	Result
1	Paint appearance	Homogeneous viscous liquid	10	Elongation at break/%	≥50
1	Paint appearance	Homogeneous viscous liquid	10	Elongation at break/%	≥50
2	Mixing ratio (mass ratio)	1:01	11	Tear strength KN/m	≥10
3	Solid content/%	≥85%	12	Impact resistance/kg*cm	100
4	Surface drying time/s	120-140	13	Flexibility	Level 7
5	A material viscosity/mPa.s	1500-2000	14	Hardness/Shore A	≥75
6	Viscosity of material B/mPa.s	2000-2500	15	Flame retardancy	Vo
7	Material A density g/cm3	1.22±0.01	16	Thermal conductivity w/m*k	≤0.2
8	B material density g/cm3	1.16±0.01	17	Wear resistance (1kg/1000r)/mg	≤350
9	Tensile strength/MPa	≥5	18	Low temperature impact resistance (-40℃*3h)	No abnormalities
